SYSTEM: Windows 11 Pro (versions with SSD)
CPU:AMD Ryzen™ 9 5900HX , 8 Cores/16 Threads
(Total L2 Cache 4MB , Total L3 Cache 16MB , Base Clock 3.3 GHz , up to 4.6 GHz)
GPU: AMD Radeon™ Graphics (Graphics Frequency 2100 MHz)
RAM: 8GB RAM DDR4 3200MHz x 2,Dual channel (SODIMM Slots×2) Supports a maximum of 64GB(32GBx2) of DDR4
SSD: M.2 2280 512GB PCIe 3.0 SSD
Storage Expansion: M.2 2280 NvMe SSD (up to 2TB) 2.5 inch SATA HDD Slot×2 (SATA 3.0 6.0Gb/s) ,maximum thickness 7mm
Wireless Connectivity: M.2 2230 WIFI Support (Wi-Fi 6，BlueTooth 5.1)
Video Output: Quad 4k Displays ; ① HDMI 2.0 (4K@60Hz) ×2 ; ② DisplayPort(4K@60Hz)×2
Audio Output: HDMI ×2, DisplayPort ×2, LINE OUT ×2
Peripherals Interface: RJ45 2.5 Gigabit Ethernet Port x 1 ; USB3.0 Port (Gen1) x 5 ; USB-C Port x 1 ; Clear CMOS x 1 ; MIC x 2
Power: DC 19V / 6.3A (adapter included) ; Consumes Power : 119.7W
WEIGHT (N.W./ G.W.): 1.22KG / 2.65KG
Product DIMENSION: 195x190x60mm

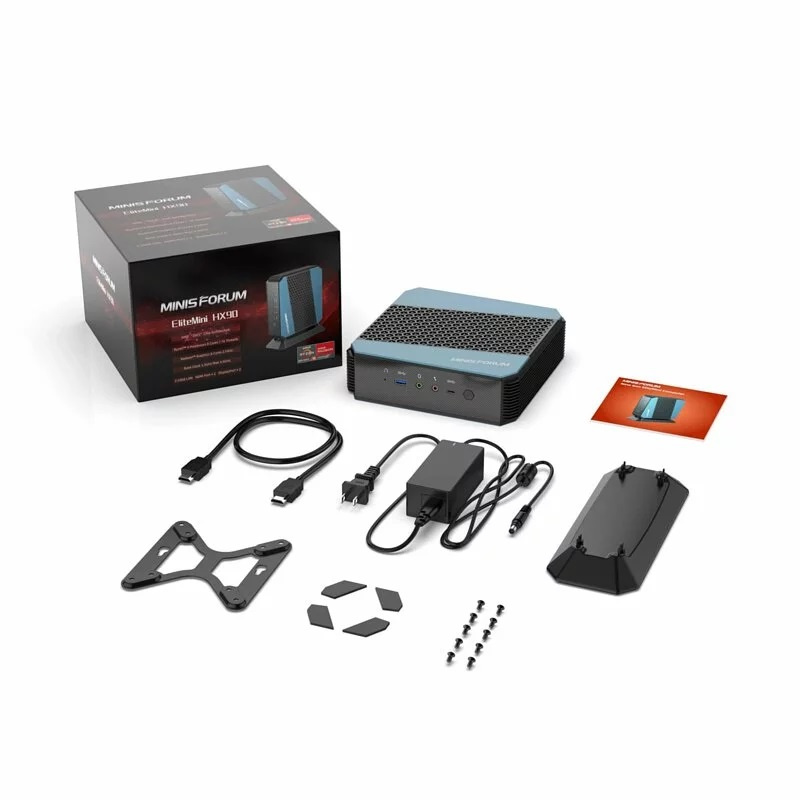

Package Cotent:
- HX90 x 1
- Power Adapter x 1
- HDMI Cable x 1
- Mounting Bracket x 1
- User Manual x 1
- Computer Stand x 1
Powerful Processor & Graphics
The AMD Ryzen 9 5900HX, 8 Cores 16 Threads. The base clock 3.3 GHz and Max Boost Clock up to 4.6 GHz (Turbo). The chip is manufactured on the modern 7 nm TSMC process.

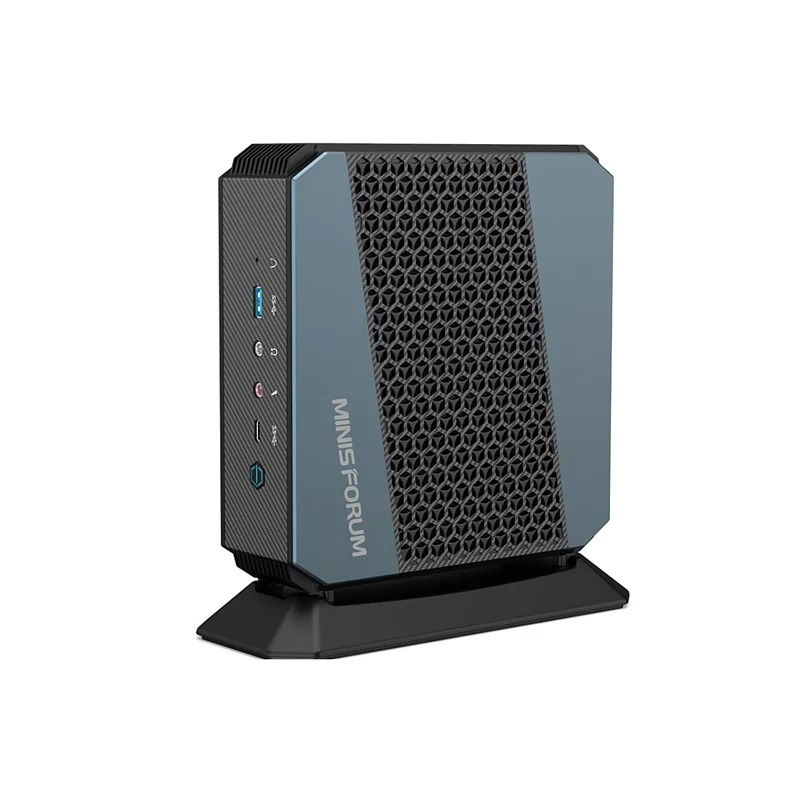

EliteMini HX90
- AMD Ryzen™ 9 5900HX
- AMD Radeon™ Graphics
- DDR4 3200MHz Dual channel
- M.2 2280 PCle 3.0 SSD
- 2×2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s)
- M.2 2230 WIFI Support
The AMD Ryzen 9 5900HX also integrates a Radeon RX Vega 8 integrated graphics card up to 2100 MHz. Furthermore, the dual channel memory controller supports DDR4-3200MHz and energy efficient LPDDR4-4266MHz RAM.
Testing Environment:CPU-AMD Ryzen™ 9 5900HX ; Monitor: 1920*1080 60Hz; RAM: DDR4 16G x2
Quad 4K Displays
AMD Radeon™ Graphics can handle all your display needs, including support for up to four displays with two HDMI and two DisplayPort. Each output can drive a 4K panel at 60Hz, With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
Upgrade-Friendly
The latest AMD Ryzen™ 9 5900HX processor offers 8 physical cores (16 logical), initially clocked at 3.3GHz, which may go up to 4.6GHz using Precision Boost. Support for a total of up to 64GB dual-channel DDR4 memory, different types of storage expansions—2.5 inch SATA HDD Slot×2 (SATA 3.0 6.0Gb/s).
Intel Wi-Fi 6 and Bluetooth 5.1
Minisforum EliteMini HX90 gives you super fast wireless connectivity, thanks to its Intel Wi-Fi 6 card. With the 802.11ax dual band Wi-Fi, it will reach up to 2.4Gb/s wireless transfer rate. You can enjoy faster and more stable Internet connections anywhere, anytime. Plus, built-in Bluetooth 5.1 means that you can pair HX90 with all kinds of your Bluetooth-enabled peripherals.
Multiple-System Compatibility
EliteMini HX90 comes with Windows 10 Pro (versions with SSD) and it's Win 11 upgradable. Besides that, it also supports Ubuntu system, just enjoy the productivity enhancement with the choice of your desired system.
